VXIbus--A Modular Standard for Test & Measurement

Trigger Bus

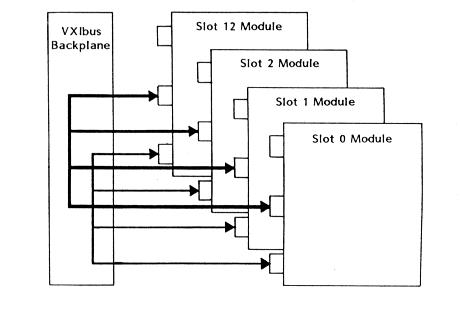

The trigger bus consists of eight TTL trigger lines and two ECL trigger lines, all of which are located on P2. Four additional ECL trigger lines are for inter--module communication, and with a worst case delay along the backplane of 2ns ensures tight time coordination between modules.
