VXIbus--A Modular Standard for Test & Measurement

Star Bus

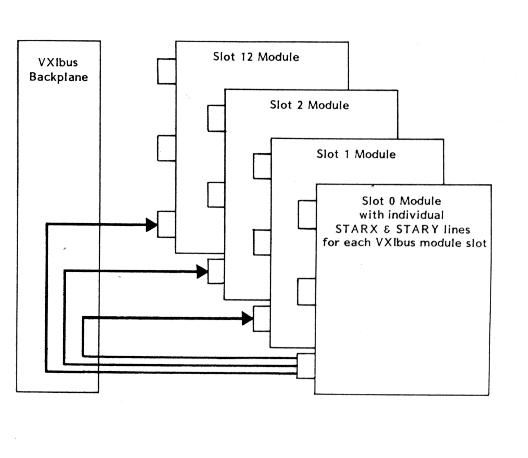

The star bus is located only on P3. It is composed of two lines-STARX and STARY--connected between each module slot and Slot 0. Slot 0 may be viewed as the center of a starfish with twelve legs--each module being situated at the end of an equal-length leg.
