VXIbus--A Modular Standard for Test & Measurement

Analog Sumbus

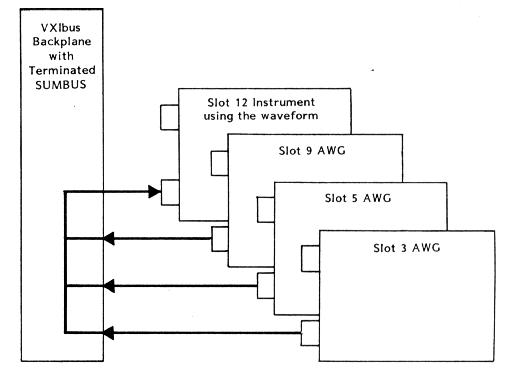

The Sumbus is an analog summing node that runs the length of the chassis backplane and terminates into 50 0hms. It is used to sum outputs from sources in order to build up complex waveforms that can act as a stimulus for another module or be output to a device under test.
